Description

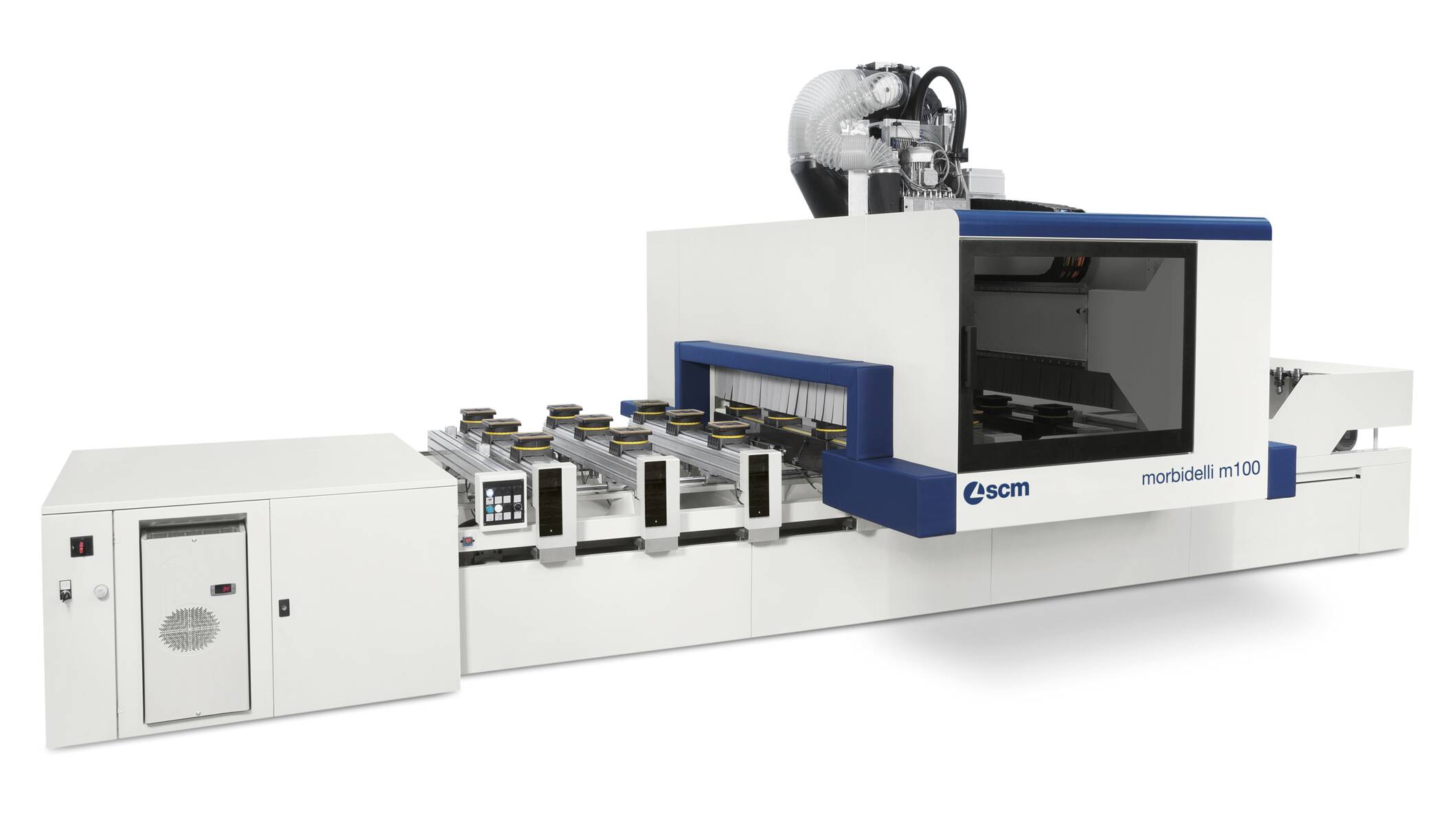

A modular CNC machining center for routing and drilling varied panels and components through SCM’s Maestro software environment. The family supports routing speeds up to 24,000 rpm, up to 44 tool positions, and up to 21 vertical and 12 horizontal drilling spindles. The featured M100 A configuration uses a 5 × 12 Pro-Space format, five-axis spindle, F23L drill, and 44-tool capacity.
Technical Specifications:
| X-Y axes dimensions | 3110×1320; 3710×1320; 5510×1320; 3110×1620; 3710×1620; 5510×1620 mm |
| Vectorial speed X-Y axes | 56 (ProSpace); 78 (ProSpeed) m/min |
| Z axis panel passage | 180 mm |
| Motor power (max.) | 15 (20,5) kW (hp) |
| Rotation speed (max.) | 24000 rpm |
| Available tools on tool changer (max.) | 44 places |
| Independent vertical spindles (max.) | 21 n. |
| Independent horizontal spindles (max.) | 12 n. |
| Rotation speed (max.) | 8000 rpm |
| Integrated blade in X, diameter | 125 mm |
| Motor power (max.) | 2,2 (3) kW (hp) |
| Rotation speed (max.) | 6000 rpm |
| Motor power (max.) | 4,5 (6) kW (hp) |
| Rotation speed (max.) | 18000 rpm |
