Description

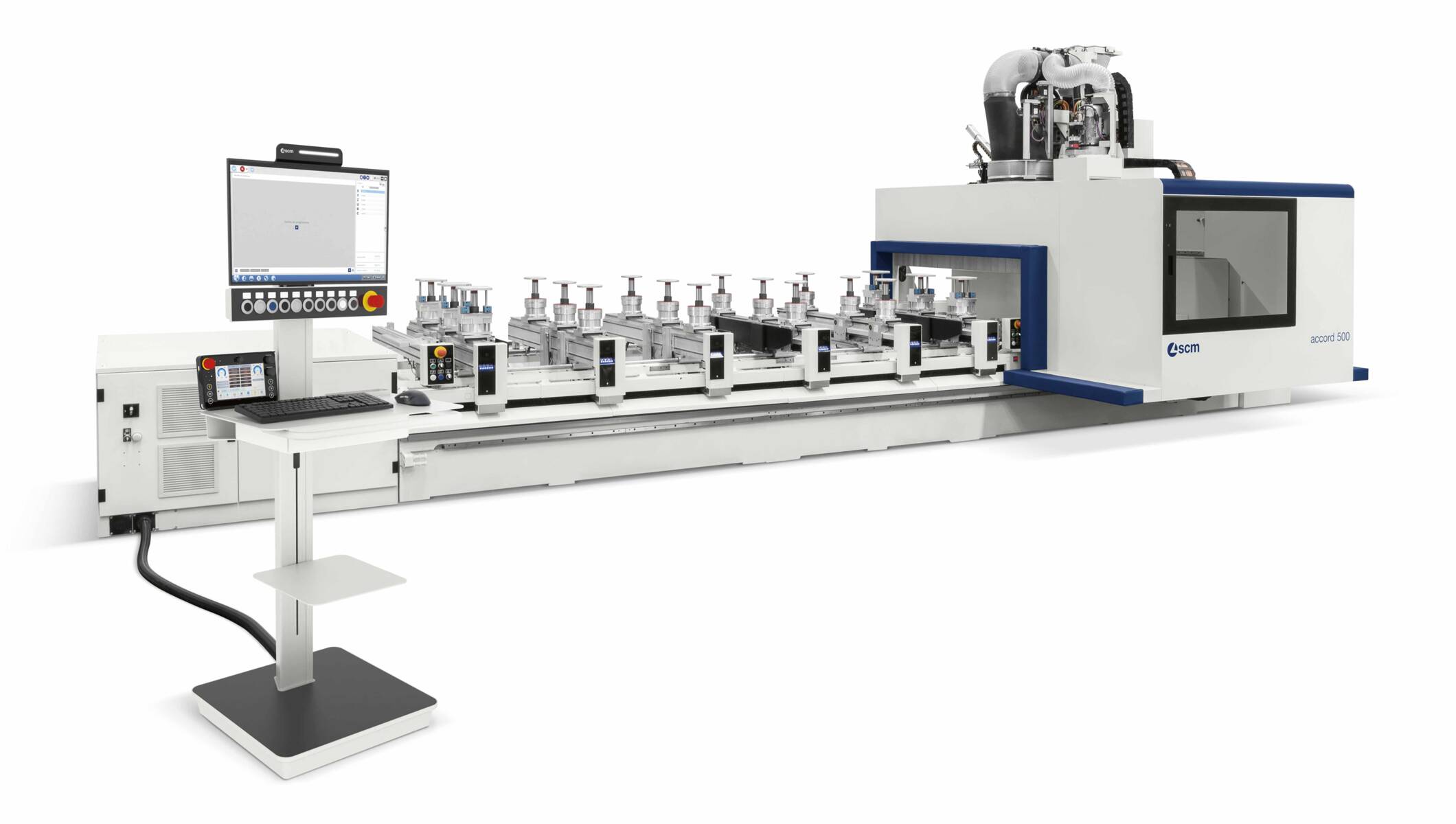

An advanced CNC machining center designed for solid-wood components and furniture production, with Pro-Space and Pro-Speed layouts available. These layouts allow shops to balance footprint and performance, while the family supports five-axis spindle speeds up to 24,000 rpm, up to 31 drilling spindles, and working areas up to 6,715 × 1,900 × 300 mm. The featured 5 × 18 Pro-Speed configuration includes eight TV-MATIC bars, four double-action lifters, a 17 kW five-axis spindle, and a 16+16+1 tool arrangement.
Technical Specifications:
| X-Y-Z axes dimensions | 3715 x 1600 x 300; 3715 x 1900 x 300; 5515 x 1600 x 300; 5515 x 1900 x 300; 6715 x 1600 x 300; 6715 x 1900 x 300 mm |
| X-Y-Z axes max. speed (PRO-SPACE) | 25-80-45 m/min |
| X-Y-Z axes max. speed (PRO-SPEED) | 90-80-45 m/min |
| 5-axeis electrospindle motor power (max.) | 20 (27) kW (hp) |
| 3/4-axis electrospindle motor power (max.) | 21 (28,5) kW (hp) |
| 5-axis electrospindle rotation speed (max.) | 24000 rpm |
| 3/4-axis electrospindle rotation speed (max.) | 24000 rpm |
| TRB side tool changer | 11 positions |
| CADDY side tool changer | 35 positions |
| RAPID rear tool changer | 16 positions |
| QUADRO rear tool changer | 35 positions |
| FAST on-board tool changer | 16 positions |
| VELOCE on-board tool changer | 16 positions |
| Vertical and horizontal spindles (up to) | 31 n. |
| Rotation speed (max.) | 8000 rpm |
| Integrated saw blade | 125 Ø |
