Description

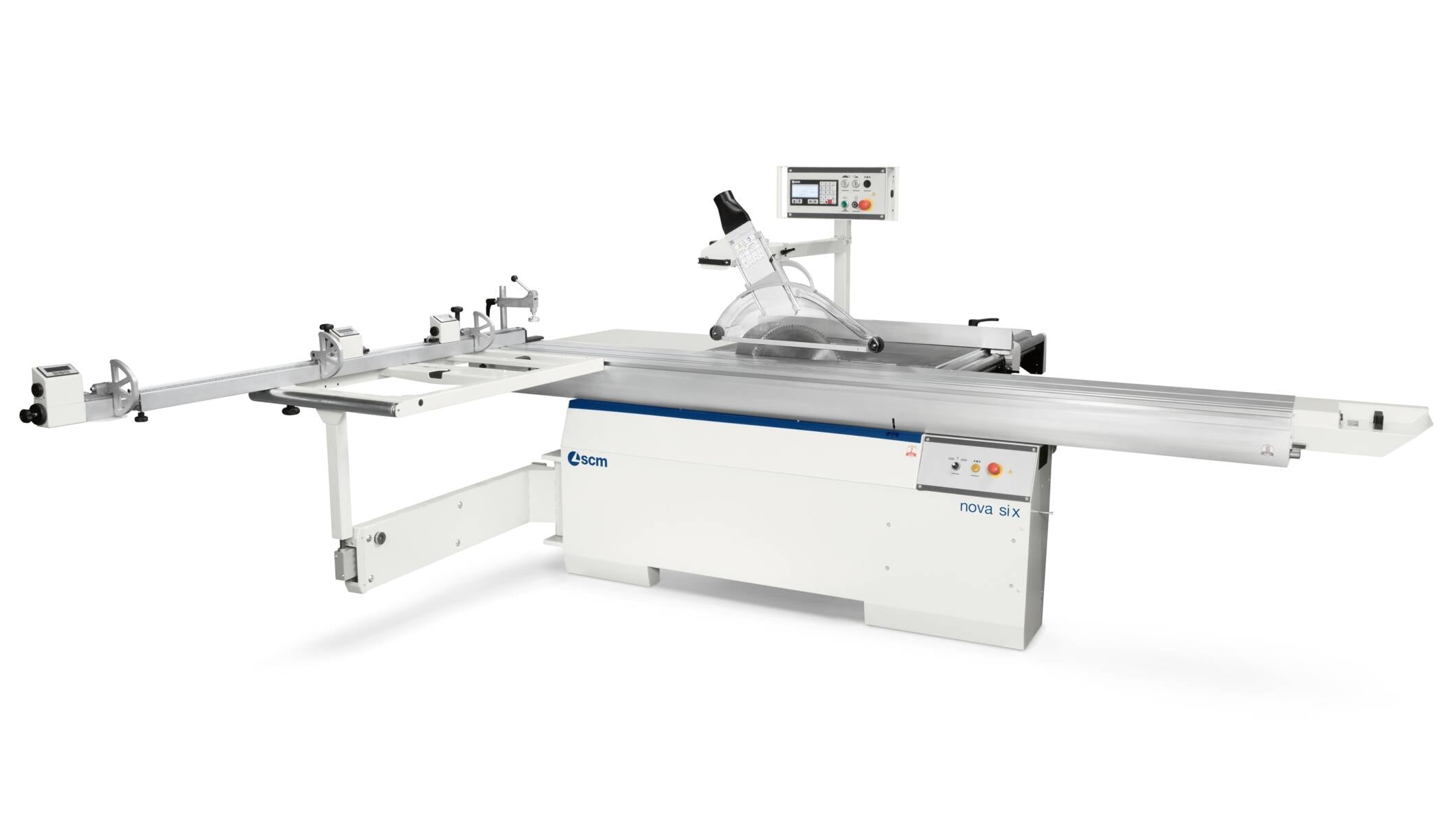

A double-tilting sliding table saw designed for accurate cutting of veneered panels and thick solid wood. Its blade tilts from −46° to +46°, providing a broad range for straight and angled work.
Technical Specifications:
| Max. saw blade diameter with mounted scorer | 400 mm / inches |
| Maximum saw blade projection from table to 90°/+46°/-46° | 136/97/60 mm / inches |
| Cutting width on rip fence (Rip capacity) | 1270 mm / inches |
| Max. squaring stroke of sliding table saw | 2600 ÷ 3200 x 3200 mm / feet |
| Three-phase motor starting from | 7 (8) / 50 (60) kW/Hz |
