Description

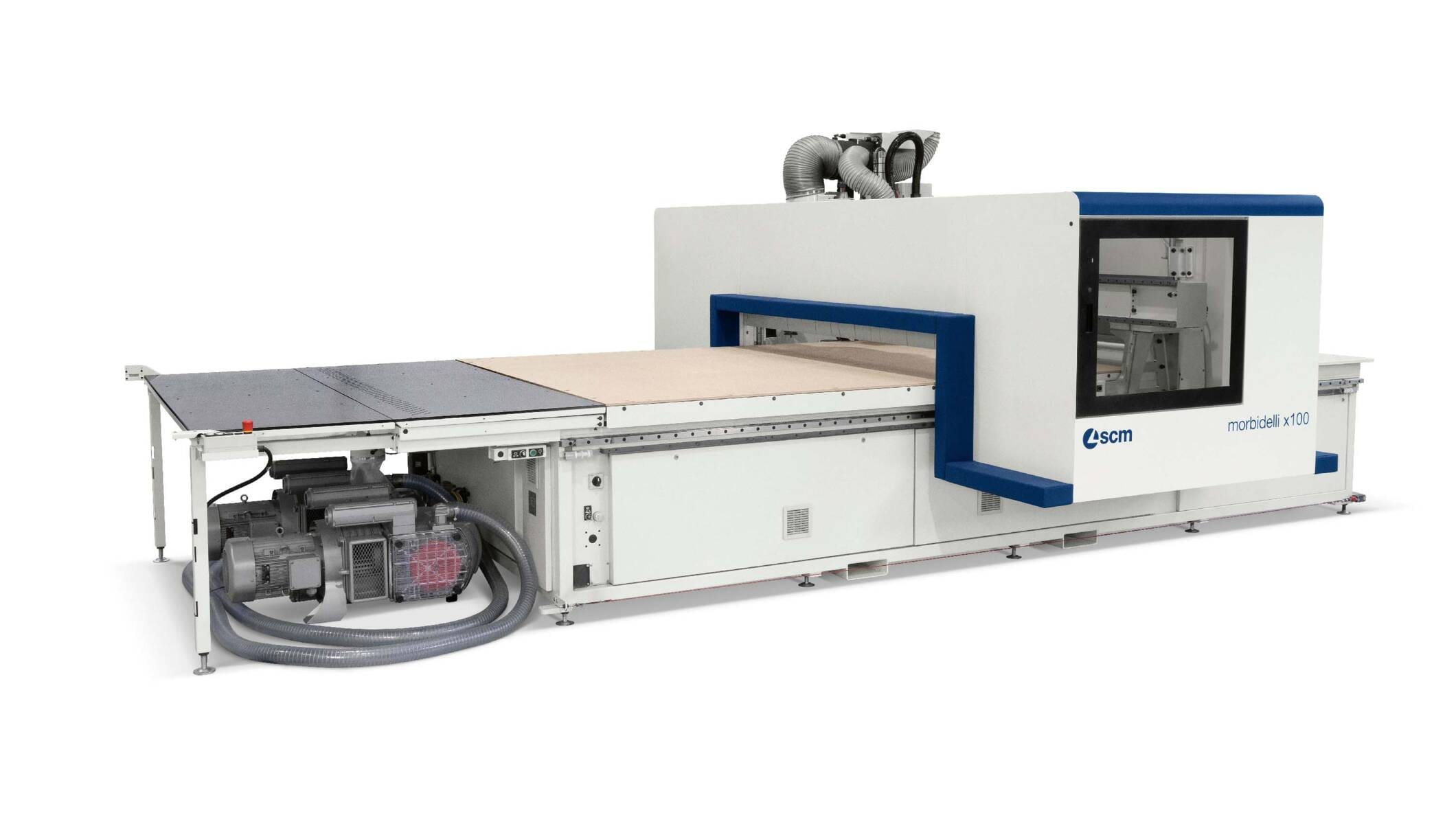

A nesting CNC machining center designed for flexible and batch-one panel production. The X100 family supports routing speeds up to 24,000 rpm, up to 31 tool positions, and up to 16 vertical and eight horizontal drilling spindles. The featured 5 × 12 configurations include a standalone PUSH machine with rake unloading and a full production cell with automatic labeling.
Technical Specifications:
| X-Y axes dimensions | 2556×1296 (100×51); 3756×1596 (147×62,8); 3756×1896 (147×74,6); 3156×2216 (124×87); 4356×2216 (171×87) mm (inches) |
| Vectorial speed X-Y axes “PRO-SPACE” version | 70 (230) m/min (ft/min) |
| Z-axis panel passage | 150 (5,9) mm (inches) |
| 3-4 axis motor power (up to) | 15 (20,5) kW (hp) |
| Rotation speed (up to) | 24000 rpm |
| Available tools on tool changer (up to) | 31 positions |
| Independent vertical spindles (up to) | 16 n. |
| Independent horizontal spindles (up to) | 8 n. |
| Rotation speed (up to) | 8000 rpm |
| Integrated blades (up to) | 2 n. |
| Integrated blade in X, diameter | 125 (4,9) mm (inches) |
