Description

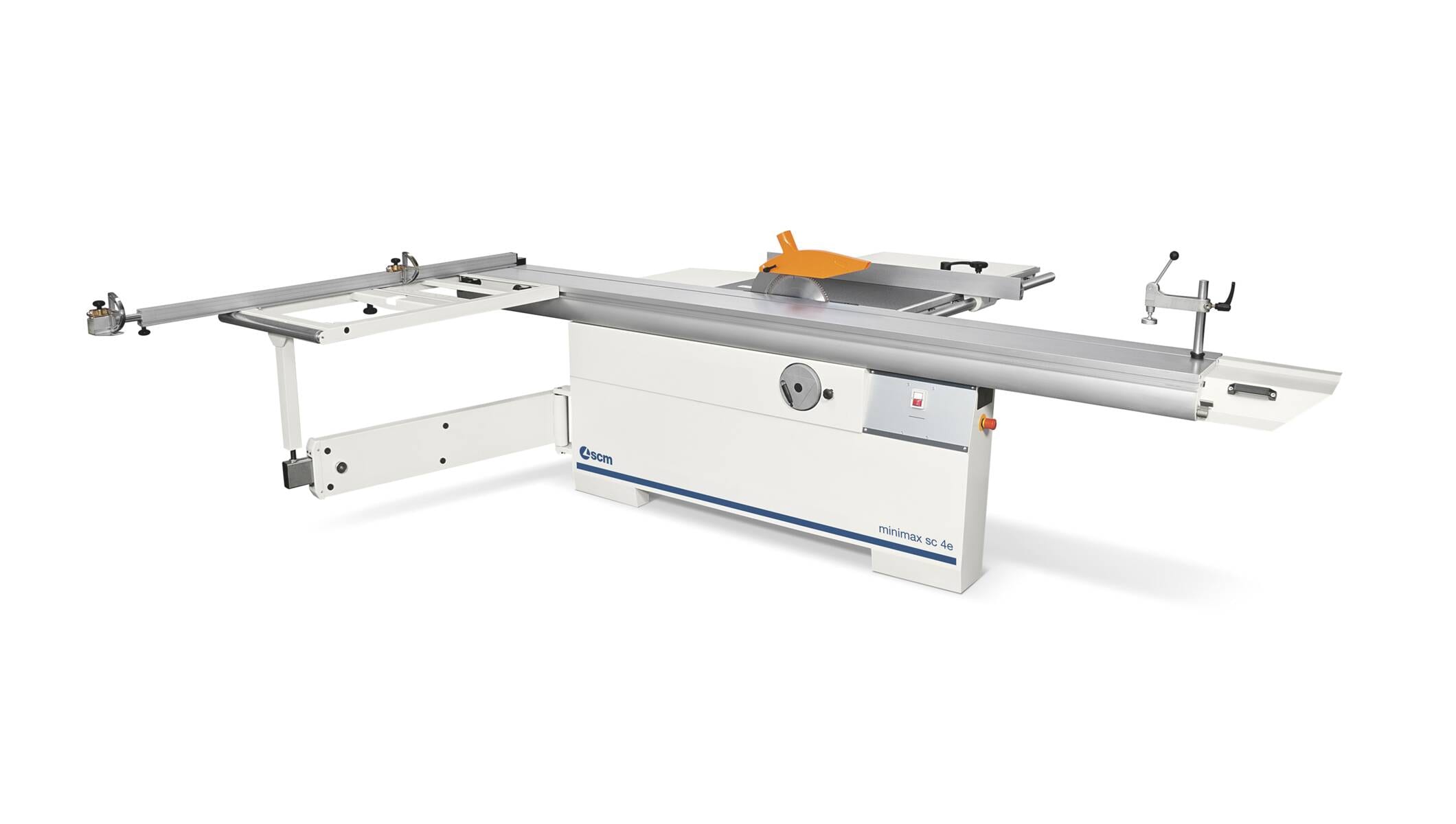

An entry-level sliding table saw that gives small cabinet shops accurate cutting in a practical, approachable format. Its cast-iron saw unit, independently adjustable scoring unit, and 50-inch rip capacity provide production-ready capability without unnecessary complexity.
Technical Specifications:
| Max. sawblade diameter with scoring blade installed | 315 / 12 mm / inches |
| Sawblade arbor size | 16 / 5/8 mm / inches |
| Scoring blade diameter | 100 / 3.93 mm / inches |
| Scoring blade arbor size | 20 / 0.79 mm / inches |
| Max. sawblade projection from table at 90°/45° | 100/70 3.94/2.75 mm / inches |
| Cutting width on parallel fence (Rip capacity) | 1270 / 50 mm / inches |
| Max. squaring stroke of sliding table saw | 2600 / 8.5 mm / ft |
| Single-phase motor | 4.8 Hp |
