Description

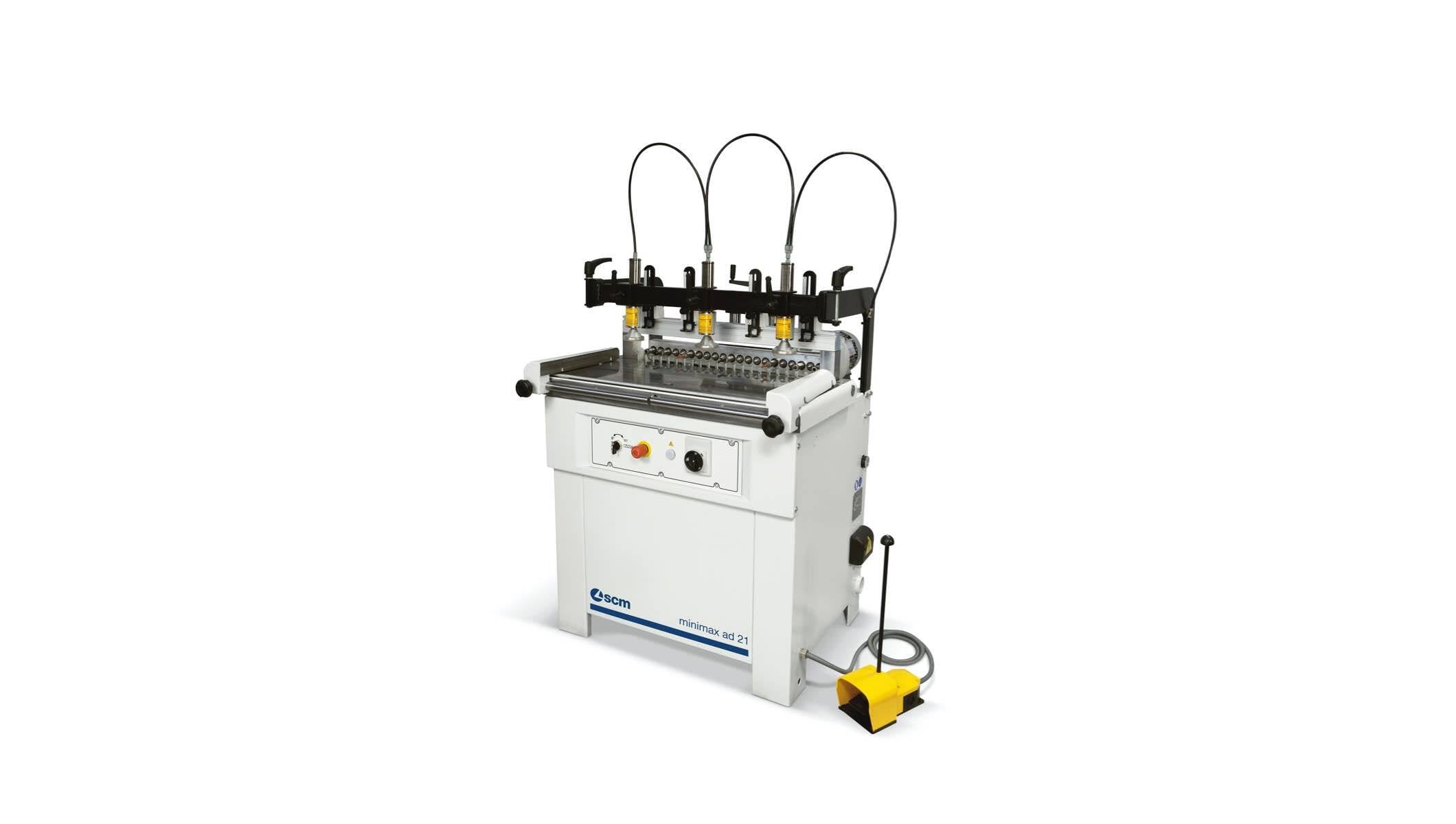

A single-head multi-boring machine designed for woodworking shops and demanding craftspeople. Its 21-spindle head uses 32 mm spacing and operates at 2,800 rpm, with capacity for panels up to approximately 32.75 inches wide.
Technical Specifications:
| Max. panel width | 833 / 32.75 mm / inches |
| Worktable dimensions | 905 x 372 / 35.6 x 14.6 mm / inches |
| Worktable height | 900 / 35.5 mm / inches |
| Max. tool diameter | 40 / 1.57 mm / inches |
| Min. – max. panel height | 10 – 85 / .375 – 3.25 mm / inches |
| Spindle speed | 2800 rpm |
| # of Spindles | 21 # |
| Spindle Spacing (center-to-center) | 32 mm |
