Description

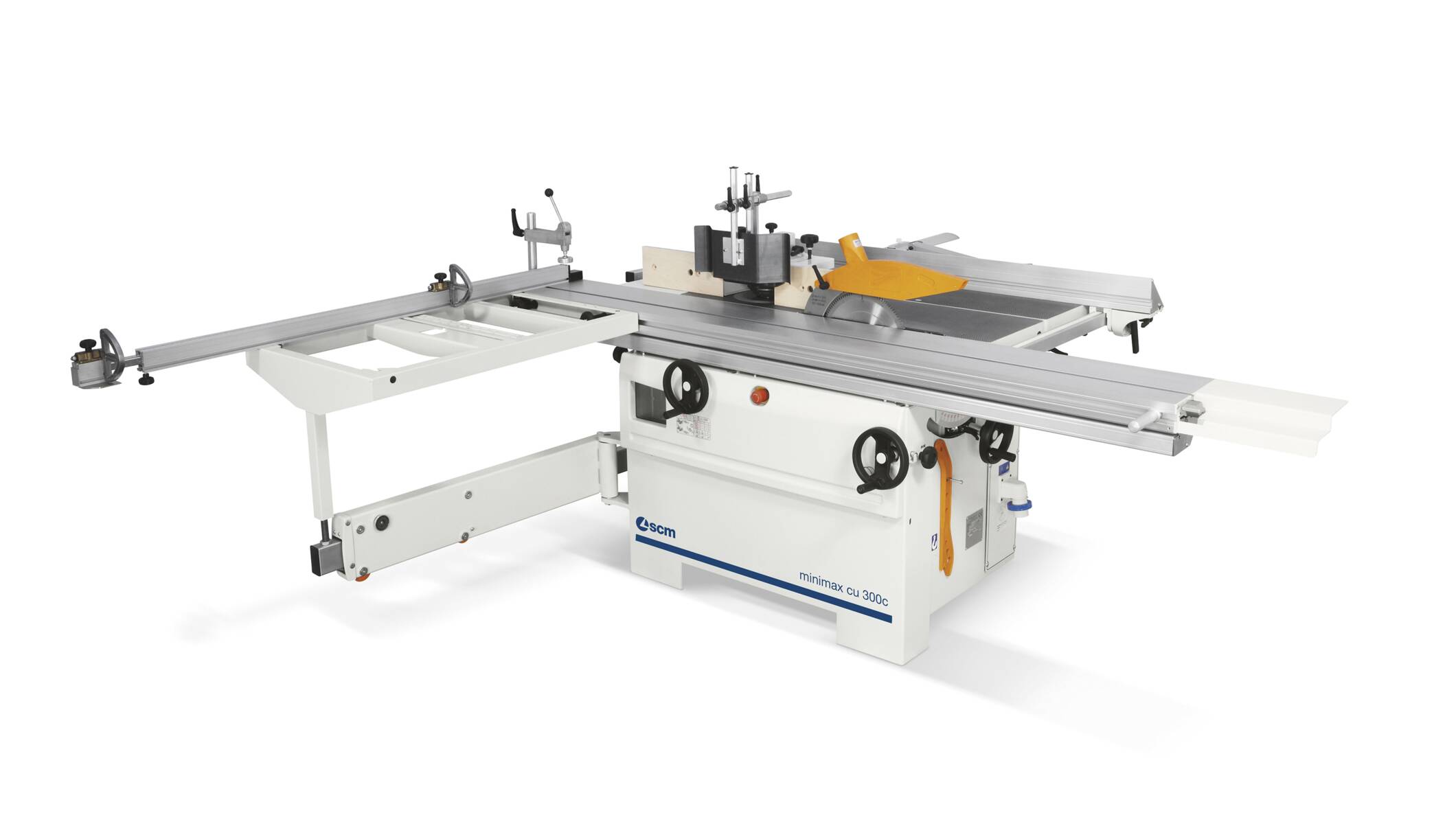

A combination machine that brings sawing, jointing, thickness planing, and spindle shaping into one practical platform for artisan workshops. This configuration includes a 12-inch cutterhead, a 12-inch tilting sawblade, and an 8.5-foot sliding table.
Technical Specifications:
| Cutterhead working width | 300 / 12 mm / inches |
| Jointer bed length | 1510 / 60 mm / inches |
| Max. sawblade diameter with scoring blade installed | 315 / 12 mm / inches |
| Sawblade arbor size | ⅝ mm / inches |
| Max. sawblade projection from table at 90°/45° | 100/78 3.75/3 mm / inches |
| Cutting width on parallel fence (Rip capacity) | 820 / 32 mm / inches |
| Max. useful spindle length | 100 / 4 mm / inches |
| Max. tool diameter when profiling | 210 / 8.25 mm / inches |
| Spindle moulder speed | 1700/4000/7000/9000 rpm |
| (3x) Single-phase motors | 4.8 Hp |
| Max. squaring stroke of sliding table saw | 1600/5.5 or 2600/8.5 mm / ft |
| With TERSA Straight-knife Cutterhead:; Cutterlock diameter / n° of standard Knives; Dimension of standard knives | 72/3; 300 x 30 x 3 mm/n°; mm |
