Description

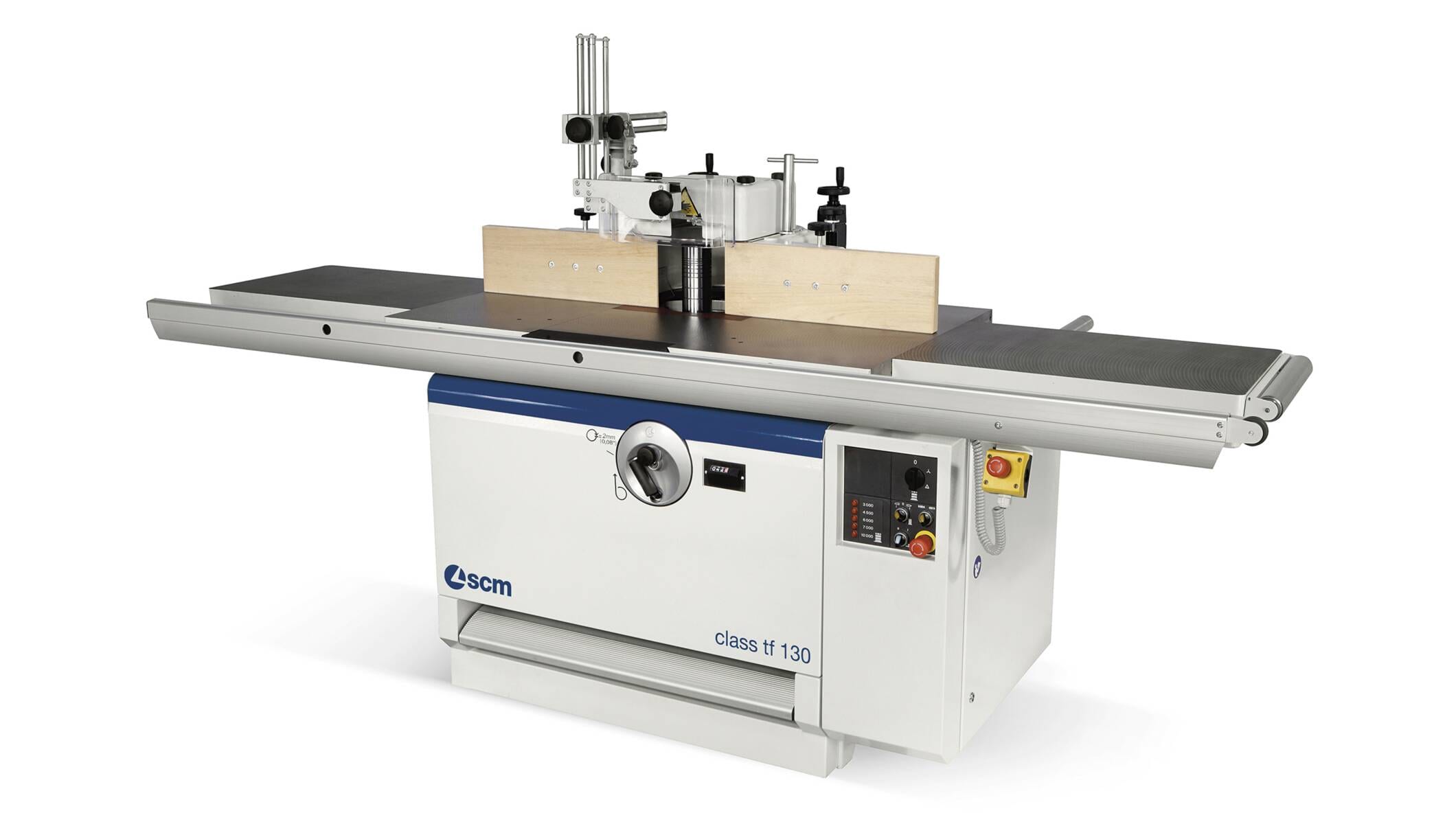

A professional fixed-spindle shaper available in manual and electronic configurations. The electronic TF 130E is designed to reduce setup time and simplify operation, while five spindle speeds from 3,000 to 10,000 rpm support varied shaping work.
Technical Specifications:
| Max. useful spindle length | 180 / 7 mm / inches |
| Spindle speed | 3000/4500/6000/7000/10000 rpm |
| Max. diameter of the profiling tool | 250 / 9.8 mm / inches |
| Max. tool diameter retractable under the table at 90° | 300 / 11.8 mm / inches |
| Max. diameter of the tenoning tool | 300 / 11.8 mm / inches |
| Three-phase motor | 11 Hp |
